A collection of stuff and things that are related to music creation a bit.
DIY electronics  & software projects
All the info you need to try yourself

Download PCB artwork & Code
Circuit Diagrams and BOM
Fully assembled or PCBs available
Delivered 2nd Class Free in UK
Arduino USB MIDI Interface
Atmel Atmega32u4 5v 6n138 MIDI
• Self Build
• 11 Components to solder
• Available as kit of parts (pre-programmed)
• 1 x MIDI IN
• 1 x MIDI OUT
• 1 x USB
• Appears as USB MIDI Controller on
   Windows Mac Linux Android
• Arduino Pro Micro
View Project
Midi to CV convertor
With OLED screen and buttons
• Convert midi to CV without computer
• Screen to see incoming MIDI
• Buttons to change RX MIDI Channel

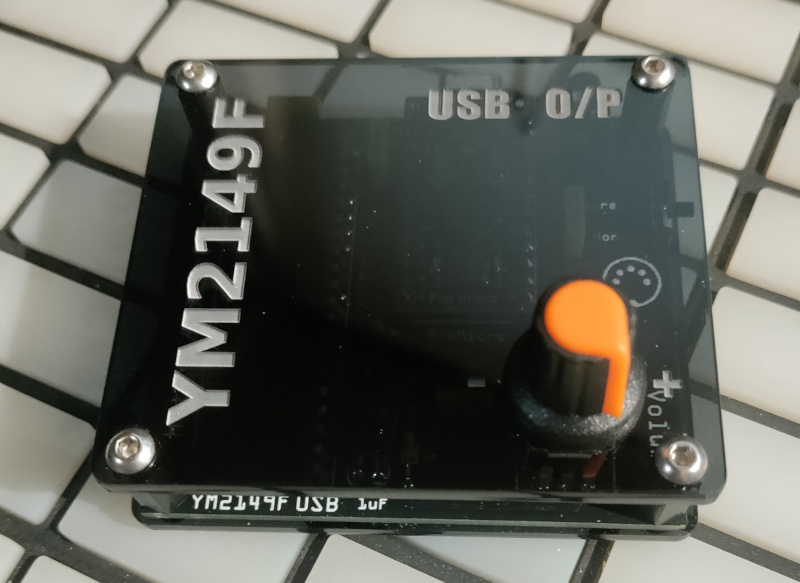

YM2149F USB Synth v2
Full USB Midi Synth v2
• USB MIDI IN - 16 Channels
• YM2149F 40 Pin
• Drums on Channel 10
• Varied envelopes on each MIDI channel
MIDI Synthesizer with 4 bit samples
Arduino YM2149F MIDI IN Synth OLED Arduino YM2149F MIDI IN Synth OLED
• 5 Pin DIN MIDI In
• 8 MIDI Channels
• Channel 10 4 bit samples
• Full code available
• 3 Voice Polyphony
• OLED Display
• Excellent S/N ratio
• 9v to 18v DC Supply
• Video in action
View 2.1a
View 2.1b
